dsh-mqtt

English | 中文

MQTT protocol driver and agent worker gateway for DeepSeek Harness (DSH).

dsh-mqtt turns a DSH process into an MQTT-addressable agent worker. A client can submit work, observe normalized execution events, steer or inject context into a running turn, cancel it, and receive a correlated final result. The DSH host only makes an outbound broker connection, so the worker can stay behind NAT or a firewall without exposing an HTTP server.

> [!IMPORTANT] > Version 0.1.6 closes a DNS-rebinding hole in the unauthenticated management API, keeps a live stream instead of polling when a management token is set, and stops a chatty controller from fsyncing the state file once per message. It currently targets DSH 0.1.0-rc.8. DSH itself is a developer preview and may introduce breaking changes.

What it provides

• MQTT 3.1.1 and 5 connections over TCP, TLS, WebSocket, or secure WebSocket;
• broker authentication with direct or environment-backed username/password credentials, custom CAs, and optional mutual TLS;
• persistent MQTT sessions, reconnect, retained presence, and Last Will;
• node-scoped submit, steer, inject, and cancel commands;
• DSH agent creation and controlled Session continuation;
• normalized session/event, agent status, and agent error output;
• QoS 1 request and control deduplication across reconnects and restarts;
• durable terminal results and interrupted-request recovery;
• workspace aliases instead of caller-supplied filesystem paths;
• active-request and payload limits;
• safe event exposure by default, with explicit full-event opt-in;
• an ACL-friendly, versioned topic layout.

This is a long-running host plugin, not an mqtt_publish or mqtt_subscribe model tool. The MQTT subscription lives with the DSH process and wakes or controls Agents when messages arrive.

When to use it

Good fits include:

• invoking a workstation or private server from CI or a cloud service;
• running small fleets of DSH workers with local repositories, credentials, browsers, or GPUs;
• asynchronous automation where the producer and worker should not maintain a direct connection;
• simple software-to-Agent or Agent-to-Agent event integration.

It is not intended to replace a synchronous HTTP API, a general MQTT client tool, or a workflow/job system with visibility timeouts, priority queues, dependency graphs, dead-letter processing, or exactly-once execution.

How it works

client / CI / SaaS
        │ request.submit (MQTT)
        ▼
   MQTT broker
        │
        ▼
 dsh-mqtt gateway ── create/resume ──► DSH Agent
        ▲                                  │
        └──── events / terminal result ────┘

The implementation uses DSH's public Agent and event surfaces:

• ctx.agents.create() and ctx.agents.resume();
• ctx.agentDefaultModel.currentSelection() and Agent-scoped model selection;
• agent.followup(), agent.steer(), agent.inject(), and agent.cancel();
• session/event, agent/status, and agent/error.

The management UI is built on the one extension point DSH offers third-party client code, ctx.slots. It registers a settings.section entry alongside the shipped ones and never replaces them. Because DSH gives plugin UI no data channel of its own, the panel reads the plugin's own management API over HTTP.

Quick start

Prerequisites

• Node.js ^22.19.0 or >=24;
• pnpm on PATH (DSH forwards plugin management to pnpm);
• a DSH provider credential, for example DEEPSEEK_API_KEY;
• an MQTT broker and a client such as Mosquitto.

For a loopback-only development broker:

mosquitto -p 1883 -v

Mosquitto 2 binds locally when started without a listener configuration. Do not expose an anonymous development broker to another network.

Cloud MQTT brokers

A hosted broker is convenient when the DSH worker and its callers are on different networks. The following services expose standard MQTT endpoints and are examples rather than endorsements:

Copy the endpoint, port, username, and password generated by the provider into the connection examples below. Check the provider's current protocol-version, region, authentication, ACL, persistence, and quota documentation before production use. A listing here does not imply that every plan supports every feature.

Install the plugin

DSH installs plugins into a profile. The web profile is convenient for a first run because the normal DSH UI remains available. A dedicated profile such as mqtt-worker can be used for unattended deployments.

From npm:

npx @deepseek-ai/dsh plugin --profile web add dsh-mqtt@0.1.6

From a local checkout:

git clone https://github.com/UllrAI/dsh-mqtt.git
cd dsh-mqtt
npx @deepseek-ai/dsh plugin --profile web add .

Directly from GitHub:

npx @deepseek-ai/dsh plugin --profile web add github:UllrAI/dsh-mqtt

Git dependencies build through the package prepare script. pnpm 10 and later may reject the first installation and print an allowBuilds key. Add the exact key from that message under allowBuilds in ~/.dsh/profiles/web/pnpm-workspace.yaml (or $DSH_HOME/profiles/web/pnpm-workspace.yaml), then run the command again. A local checkout or built tarball does not need this allowance.

pnpm may also report missing DSH peer dependencies while installing an out-of-tree bundle. The DSH launcher supplies its own matching core packages through the profile fallback at boot; --dump-config and the startup check below are the authoritative validation.

Configure the profile

Edit ~/.dsh/profiles/web/cordis.patch.yml, or the equivalent path below $DSH_HOME. The bundle already inserts a row named mqtt-gateway; the profile patch replaces that row's complete configuration.

- id: mqtt-gateway
  config:
    url: mqtt://127.0.0.1:1883
    namespace: ullrai
    nodeId: mac-mini
    displayName: Mac mini · development

    # The management API and standalone page listen on loopback by default.
    # The DSH settings panel reads this API too, so leave the port on.
    managementHost: 127.0.0.1
    managementPort: 3210
    requireControllerAuth: true

    workspaces:
      repo-foo: /absolute/path/to/repo-foo
    defaultWorkspace: repo-foo

    # Use an absolute path so state does not depend on the launch directory.
    stateFile: /absolute/path/to/dsh-mqtt-state.json

    capabilities: [coding]

Path fields are resolved by Node.js. ~ and environment variables are not expanded inside these values; use absolute paths. Relative paths are resolved from the directory where DSH is launched.

Inspect the composed profile without booting it:

npx @deepseek-ai/dsh --profile web --dump-config

Then start DSH from the desired workspace:

export DEEPSEEK_API_KEY='...'
npx @deepseek-ai/dsh --profile web

Open the Worker UI

The Worker UI comes in two forms. Both render the same panel against the same API, so use whichever fits the deployment.

In DSH. Open DSH settings and select MQTT Worker. This is the usual way in: no second tab, and the panel follows the shell's language and theme. It reads the management API on managementPort, which loopback origins may call without extra configuration. If the plugin's management server runs somewhere other than http://127.0.0.1:3210, set DSH_MQTT_MANAGEMENT_URL on the shell window to its /api root.

Standalone. For headless or remote Workers with no DSH web shell in front of the operator, the plugin also serves a page of its own on the Worker machine:

http://127.0.0.1:3210/

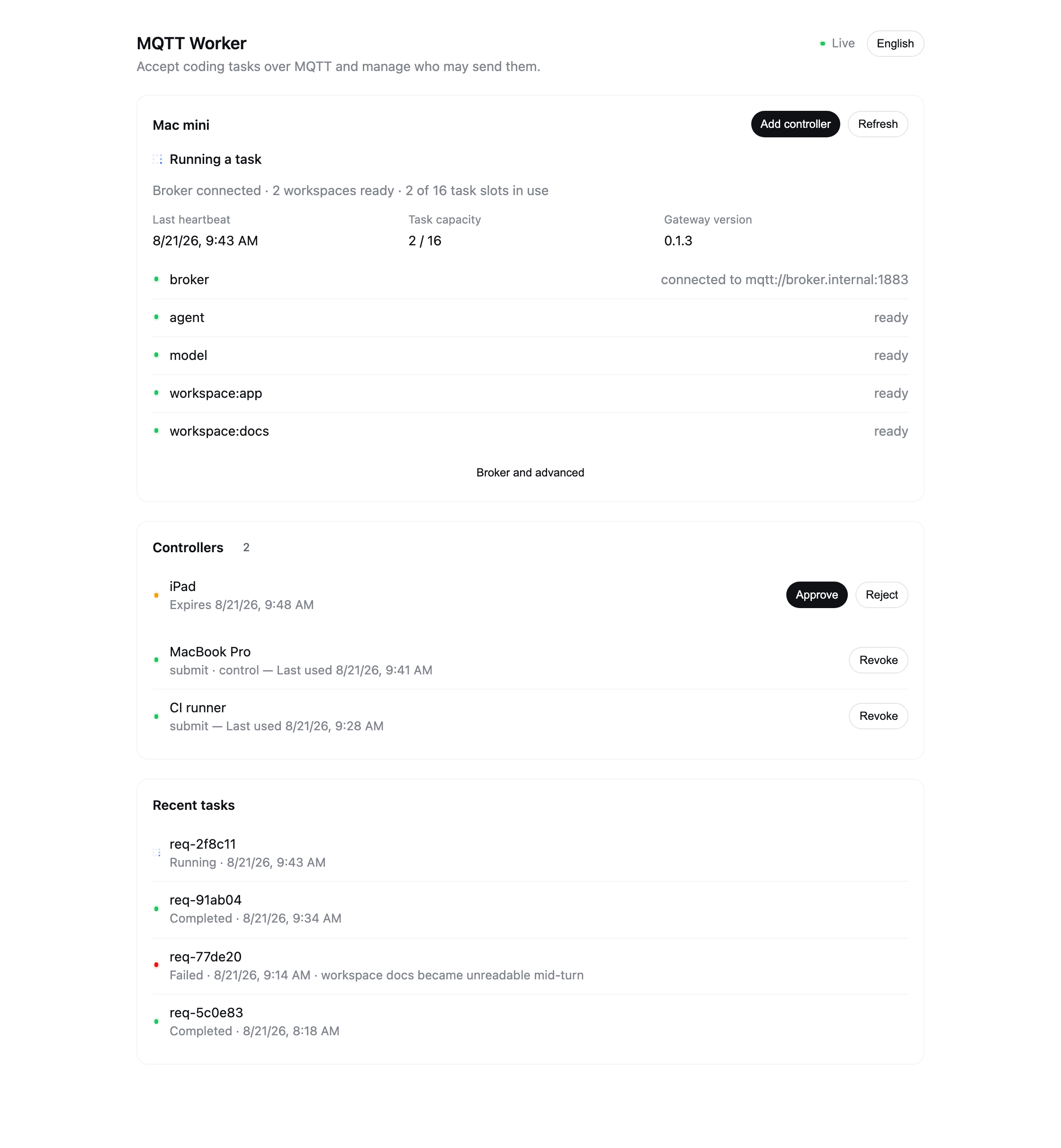

!The Worker UI, showing node health, controllers, and recent tasks

Broker, Agent, model, workspace, and capacity data come from live Gateway checks. Both forms create controller invitations, approve access, list recent tasks, report last use, and revoke controllers. Updates arrive over Server-Sent Events and fall back to polling when the stream cannot be held open. Set managementPort: 0 to turn off the API and the standalone page — which also leaves the DSH panel with nothing to read.

The panel speaks English and Chinese. Inside DSH it follows the shell's language; the standalone page picks one up from the browser and offers a switch in its header.

The management server binds to loopback by default. A non-loopback managementHost requires managementToken or managementTokenEnv; the UI asks for that token and keeps it in sessionStorage for the current tab only, while API clients send Authorization: Bearer <token>. Cross-origin requests are accepted from loopback origins, which is what the DSH panel needs; set managementCorsOrigin to name a single exact origin instead. Without a token, then, any page you open on this machine can drive the API — including a page that resolves its own hostname to loopback, which is why requests arriving under a non-loopback Host are refused with 421. Set a management token on a machine where that matters, and never expose an unauthenticated management endpoint to a network.

Add a controller

1. Select Add controller in the Worker UI and generate a ten-minute invitation. 2. Copy the invitation to the controller. It contains the Broker URL, namespace, node ID, controller ID, and application token, but no Worker Broker password or model credential. 3. Configure separate Broker credentials on the controller with node-scoped ACLs. 4. Approve the controller — either in the invitation dialog you just used, or later from the pending list. With requireControllerAuth: true, pending, expired, or revoked tokens cannot submit or control work.

Programmatic controllers can use the exported MqttControllerClient. It adds controller_id and token to commands, subscribes to status/events/results, and provides waitForResult().

The retained status message should appear at:

mosquitto_sub -h 127.0.0.1 -q 1 -v \
  -t 'dsh/v1/ullrai/nodes/mac-mini/status'

Submit a request

Subscribe before publishing because events and results are deliberately not retained:

export BASE='dsh/v1/ullrai/nodes/mac-mini'
export REQUEST_ID="request-$(date +%s)"

mosquitto_sub -h 127.0.0.1 -q 1 -v \
  -t "$BASE/requests/$REQUEST_ID/events" \
  -t "$BASE/requests/$REQUEST_ID/result"

In another terminal, using the same BASE and REQUEST_ID:

export NOW="$(date -u +%Y-%m-%dT%H:%M:%SZ)"

mosquitto_pub -h 127.0.0.1 -q 1 \
  -t "$BASE/requests" \
  -m "{\"version\":1,\"id\":\"$REQUEST_ID\",\"type\":\"request.submit\",\"timestamp\":\"$NOW\",\"input\":\"Run the tests and summarize the failures.\",\"workspace\":\"repo-foo\"}"

The gateway publishes request.accepted, request.session, Agent/session events, and one final request.result:

{
  "version": 1,
  "id": "request-1755417600",
  "type": "request.result",
  "timestamp": "2026-08-17T12:04:00.000Z",
  "status": "completed",
  "session_id": "mqtt-6a0fe184-bb2a-45d4-941b-e079923b93db",
  "summary": "All tests passed.",
  "error": null
}

Topic layout

Every topic is scoped by protocol version, namespace, and node:

dsh/v1/{namespace}/nodes/{nodeId}/requests
dsh/v1/{namespace}/nodes/{nodeId}/requests/{requestId}/control
dsh/v1/{namespace}/nodes/{nodeId}/requests/{requestId}/events
dsh/v1/{namespace}/nodes/{nodeId}/requests/{requestId}/result
dsh/v1/{namespace}/nodes/{nodeId}/status

Current delivery settings are:

The gateway never executes a retained command. Retain is reserved for node presence.

namespace, nodeId, workspace aliases, request IDs, command IDs, and Session IDs are topic-safe identifiers. Request, command, and Session IDs match:

[A-Za-z0-9][A-Za-z0-9._:-]{0,127}

Protocol

Messages are UTF-8 JSON. Request-scoped input contains:

{
  "version": 1,
  "id": "request-01",
  "type": "request.submit",
  "timestamp": "2026-08-17T12:00:00Z"
}

timestamp must be a syntactically and calendrically valid RFC 3339 date-time. Version 1 validates its form but does not currently enforce clock skew or a freshness window. Use unguessable, never-reused IDs and broker authentication to prevent replay.

Unknown fields are ignored within protocol version 1. Unknown types and invalid values are rejected without execution.

Submit

{
  "version": 1,
  "id": "request-01",
  "type": "request.submit",
  "timestamp": "2026-08-17T12:00:00Z",
  "input": "Upgrade the dependency and run the tests.",
  "workspace": "repo-foo",
  "metadata": {
    "source": "ci",
    "pull_request": 42
  }
}

Control

Controls are accepted only while the correlated request is active. Every control needs a unique command_id for QoS 1 deduplication.

Steer the current turn:

{
  "version": 1,
  "id": "request-01",
  "command_id": "command-01",
  "type": "request.steer",
  "timestamp": "2026-08-17T12:01:00Z",
  "input": "Fix the integration tests first."
}

Inject additional input:

{
  "version": 1,
  "id": "request-01",
  "command_id": "command-02",
  "type": "request.inject",
  "timestamp": "2026-08-17T12:01:10Z",
  "input": "The staging service is unavailable."
}

Cancel:

{
  "version": 1,
  "id": "request-01",
  "command_id": "command-03",
  "type": "request.cancel",
  "timestamp": "2026-08-17T12:02:00Z",
  "reason": "user_cancelled"
}

Publish controls to requests/{id}/control. A failed control is not a terminal request result. It produces request.control.failed or request.control.rejected; retry it with a new command_id after addressing the cause.

Events

All events use this envelope:

{
  "version": 1,
  "id": "request-01",
  "type": "agent.output.delta",
  "timestamp": "2026-08-17T12:00:05.000Z",
  "sequence": 7,
  "data": { "text": "I found three failing tests..." }
}

Gateway lifecycle events do not have a sequence. Normalized DSH Session events preserve the DSH sequence when one is available. Clients must tolerate missing sequence values, duplicates, and gaps.

With the default eventExposure: safe:

• visible assistant text is emitted as agent.output.delta and session.assistant/message;
• tool calls expose identifiers and tool names, not arguments;
• tool results expose identifiers and failure state, not result content;
• reasoning deltas are omitted;
• unknown Session event payloads are replaced by { "redacted": true };
• visible text, usage, and operational error fields are still application data and may be sensitive.

eventExposure: full publishes cloned raw DSH event data with a session. type prefix. Use it only with trusted subscribers; it can contain prompts, reasoning, tool arguments, tool output, paths, and secrets.

Results and errors

Every accepted request eventually has a stored status of completed, failed, or cancelled. A result contains error: null or:

{
  "code": "CAPACITY_EXCEEDED",
  "message": "gateway has reached its active request limit",
  "retryable": true
}

Common error codes include RETAINED_COMMAND, REQUEST_ID_CONFLICT, CAPACITY_EXCEEDED, SESSION_NOT_OWNED, SESSION_BUSY, WORKSPACE_REQUIRED, WORKSPACE_NOT_ALLOWED, AGENT_START_FAILED, CONTROL_FAILED, GATEWAY_RESTARTED, and GATEWAY_STOPPED.

A terminal result describes the Agent request. It does not make tool calls or other external side effects transactional.

Session continuation

For a new request, the gateway creates a random mqtt-{uuid} DSH Session and returns its ID. To continue it, submit a new request ID with that session_id:

{
  "version": 1,
  "id": "request-02",
  "type": "request.submit",
  "timestamp": "2026-08-17T12:10:00Z",
  "input": "Now implement the first fix.",
  "session_id": "mqtt-6a0fe184-bb2a-45d4-941b-e079923b93db"
}

By default, only Sessions recorded as created or used by this gateway may be resumed. Their ownership records persist independently of request deduplication expiry.

allowExternalSessions: true permits any broker client with publish access to request a syntactically valid DSH Session ID. MQTT application messages do not carry a trustworthy publisher identity to the plugin, so dsh-mqtt cannot authorize a Session per end user. Enabling this option expands the trust boundary to every principal allowed to publish to that node's request topic. Prefer node/namespace isolation and broker ACLs.

Only one active MQTT request may control a Session at a time.

Presence

The gateway publishes retained online status after each successful connection:

{
  "version": 1,
  "type": "node.status",
  "timestamp": "2026-08-17T12:00:00.000Z",
  "node_id": "mac-mini",
  "display_name": "Mac mini · development",
  "state": "ready",
  "online": true,
  "heartbeat_at": "2026-08-17T12:00:00.000Z",
  "expires_at": "2026-08-17T12:00:30.000Z",
  "active_requests": 0,
  "request_capacity": 16,
  "workspaces": [{ "alias": "repo-foo", "status": "ready" }],
  "controller_auth_required": true,
  "gateway_version": "0.1.6",
  "protocol_version": 1,
  "capabilities": ["coding"],
  "health": [
    { "name": "broker", "status": "ready" },
    { "name": "agent", "status": "ready" },
    { "name": "model", "status": "ready" },
    { "name": "workspace:repo-foo", "status": "ready" }
  ]
}

state is one of connecting, ready, busy, degraded, offline, or stopped. Controllers must not trust a retained online: true forever: when the current time passes expires_at, treat the node as stale until a new heartbeat arrives. Presence exposes workspace aliases, never filesystem paths.

It configures a retained offline Last Will on the same topic and explicitly publishes offline status during graceful shutdown. A Last Will timestamp is created when the connection is configured, not when the broker detects the disconnect; use broker receipt time when exact offline timing matters.

Delivery, deduplication, and recovery

MQTT QoS 1 is at least once. dsh-mqtt uses the request payload fingerprint plus id, and the control payload fingerprint plus command_id, to avoid executing identical redeliveries twice.

…
